| Model No.︰ | FG-GBN-380 |
| Brand Name︰ | FEIGAO |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | - |
|
|
|
|
|

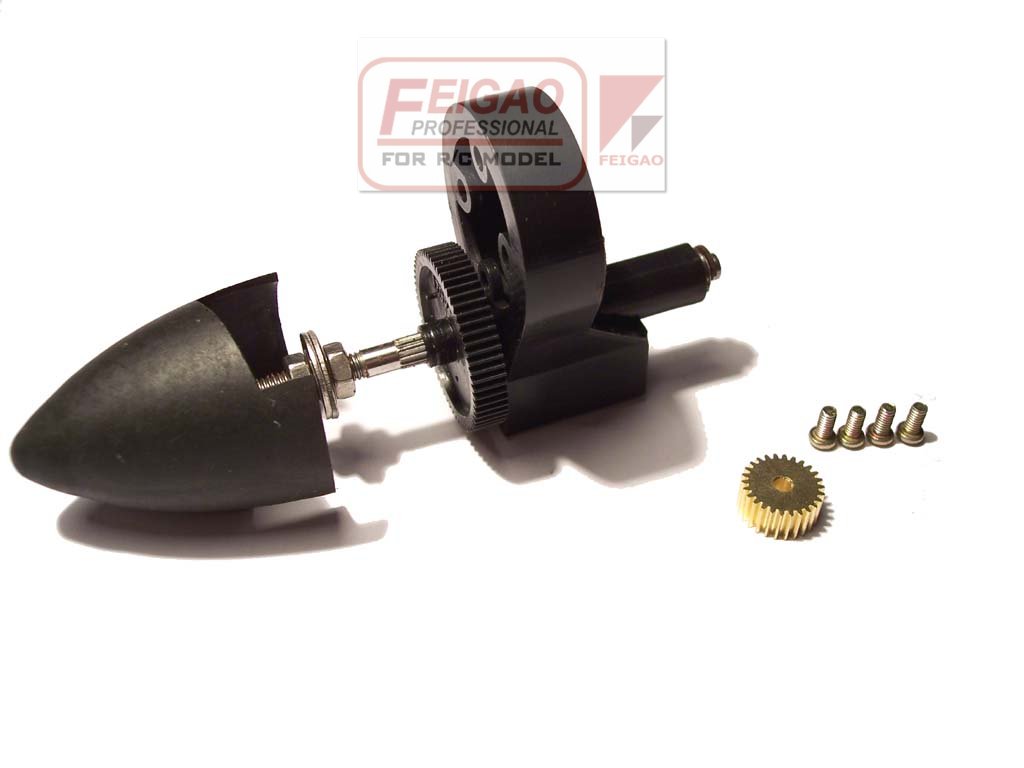

380 gearbox for 380 size motor.
Weight: 25g include spinner
Gearbox shaft size:4mm
Pinion fit for 380 series motor with 3.175mm shaft size. |
|
|
|
| Specifications︰ | Model /Secondary /Gear /Main pinion/ Gear rate
A : M0.4x60T M0.4*28T 60T/28T=2.14
B : M0.4x62T M0.4*26T 62T/26T=2.38
C : M0.4x64T M0.4*24T 64T/24T=2.67
D : M0.4x66T M0.4*22T 66T/22T=3.00
E : M0.4x68T M0.4*20T 68T/20T=3.40
F : M0.4x70T M0.4*18T 70T/18T=3.90
G : M0.4x72T M0.4*16T 72T/16T=4.50
H : M0.4x74T M0.4*14T 74T/14T=5.28
I : M0.4x76T M0.4*12T 76T/12T=6.30
|
| Advantages︰ | Plastic bracket, light weight and high temperature resistance. |
|
|
|
|
|
|
